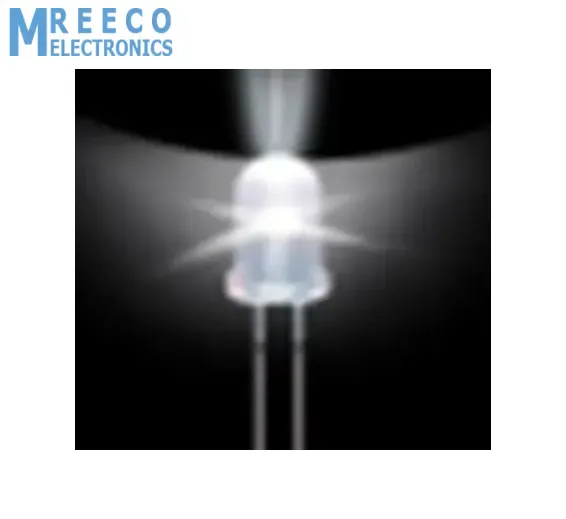

5mm White Led Light Bulb [CLONE]

5mm White Led Light Bulb is designed for the application required high luminous intensity.5mm White Led Light Bulb, the phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white. These LED light bulbs can be used in outdoor displays, optical indicators, backlighting, marker lights etc.

Features of 5mm White Led Light Bulb:

1. Popular T-1 3/4 colourless 5mm package.
2. High luminous power.
3. Typical chromaticity coordinates x=0.30, y=0.29 according to CIE1931.
4. Bulk, available taped on the reel.
5. ESD-withstand voltage: up to 4KV.
6. The product itself will remain within the RoHS compliant version.
7. Forward Voltage: 3.0V-3.2V.
8. Recommend Working Current: 15 mA-18 mA
9. Luminous Intensity: 16000-18000 mcd at 20mA

Specifications of 5mm White Led Light Bulb:

Parameter Rating Unit Continuous Forward Current 30 mA Peak Forward Current(Duty /10 @ 1KHZ) 100 mA Reverse Voltage 5 V Operating Temperature -40 ~ +85 ℃ Storage Temperature -40 ~ +100 ℃ Soldering Temperature (T=5 sec) 260 ± 5 ℃ Power Dissipation 100 mW Zener Reverse Current 100 mA Electrostatic Discharge 4K V

Applications:

1. Outdoor Displays
2. Optical Indicators
3. Backlighting
4. Marker Lights

Package Includes:

• 1 x 5mm White Led Light Bulb

• SKU: 637731262022523309
• /
• Category: Car Electronics
• /
• Tags: 5mm White Led Light Bulb [CLONE]
